Global LED manufacturer INFiLED has introduced ArmorLED Technology, of which, according to the company, sets a new standard for the durability and reliability of LED screens. This new technology boasts three-to-five times the thrust of standard LEDs, effectively mitigating the risks of damage during operation, installation or transportation. ArmorLED Technology achieves this through four key techniques, including the M2/M4 LED, Glue-On Electronics (GOE) Process, Surface Mount Technology (SMT) Process, and optimized PCB Pad, culminating in a more resilient display solution, says INFiLED.
M2/M4 LEDs: Double the Pins, Doubling the Strength
Traditional LEDs typically feature a four-pin configuration, but INFiLED’s ArmorLED leverages the M2 and M4 packaging designs, increasing the number of pins to eight or more. This enhancement enlarges the soldering area, dramatically improving welding strength and boosting thrust by double, says INFiLED.
Courtesy / INFiLED
GOE Process: Seamlessly Filling Gaps for Superior LED Performance
INFiLED addresses the issue of gaps between the LED and PCB with precision using its GOE Process. This method utilizes advanced equipment to meticulously control the glue’s amount and placement, effectively eliminating gaps and reinforcing the LED-PCB connection. The robust bonding ensures heightened protection and maintains exceptional display quality, says INFiLED.

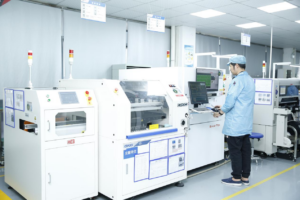

With 15 years of experience in manufacturing and extensive data analysis, INFiLED has refined its approach to SMT in three aspects: INFiLED’s expertise in stencil design, precise control of SMT reflow soldering temperature, and the use of high-precision SMT equipment. This comprehensive strategy ensures soldering of the highest reliability, says the company.
Courtesy / INFiLED
PCB Pad: Optimizing Pad Dimensions for Enhanced Soldering Connections
The PCB Pad, which facilitates the attachment of components to the PCB through soldering, plays a crucial role in the LED’s soldering quality. INFiLED carefully determines the optimal pad size to secure a strong and durable bond between the LED and PCB. This optimization significantly enhances the overall stability and longevity of the LED.
INFiLED’s ArmorLED Technology boosts durability and reliability by reducing LED damage and enhancing performance, while also lowering maintenance costs.
