DiGiCo’s Quantum7 Console is the Audio Hub for the NBA’s Season Restart

Firehouse Productions supplies three DiGiCo Quantum7 desks and nine SD-Racks for the most unique sports ecosphere in history.

CI Staff Leave a Comment
DiGiCo’s Quantum7 Console is the Audio Hub for the NBA’s Season Restart

The NBA’s 2019-2020 season looked like it was going to be one of the most exciting yet, but it was interrupted on March 11 by the pandemic-induced sports shutdown, a few weeks before the playoffs were set to tip off.

Instead, the NBA reformatted its season, with contending teams playing eight regular-season games, then jumping into playoffs and NBA Finals on three courts in the Wide World of Sports complex in Orlando, Florida from July 30 through mid-October.

All of these games feature court sound done in a way as never before. Each venue has two sound systems: one aimed at the court, and the other at the audience. The court system is designed to immerse the NBA players in crowd and live venue sounds to emulate their traditional experience.

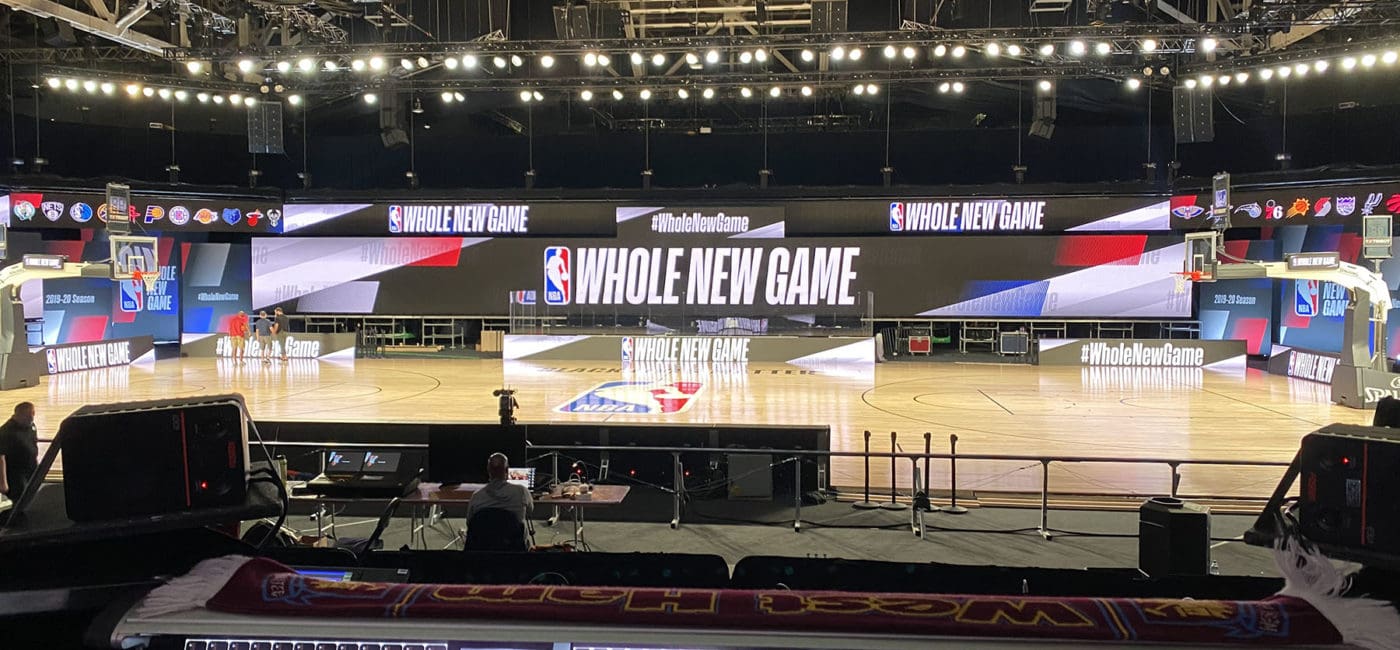

This system is mixed through a DiGiCo Quantum7 console in each of the Wide World of Sports’ three venues: the Arena, the main national telecast court and site of conference finals and NBA Finals; the HP Field House court, used for the regular season to second round; and the Visa Athletic Center, used for games broadcast exclusively by regional sports networks.

Related: Oura Smart Ring Faces Ultimate Test Inside NBA Bubble City at Walt Disney World

The consoles—three DiGiCo SD7 desks each updated with new Quantum engines—are the hubs for all of the audio elements that are feeding these courts. Those elements include over 1,500 individual audio clips such as cheers, boos, and other reaction sounds.

These are stored on media servers and collected from a variety of authentic sources, including originally produced content, foley, and content provided by the teams and the league. In addition, the Quantum7 creates a 5.1 version of the audience sounds that is sent to broadcast for on-air use.

Firehouse Productions VP Mark Dittmar says the Quantum7 assigned to the Arena was the first to be programmed and became the template for the other two Quantum7 desks.

“Once we got all of our basic relative levels set there, the only mixing that’s done is on the systems that the people controlling these crowd and other sound effects are using during the games,” he said.

“The DiGiCos then become these big, reliable routers that are used for the live sound for the entire season,” said Dittmar.

Quantum7

Quantum7 Brings Flexibility and Power

The identical configuration of each console means that any of Firehouse Productions’ A1s can move between the venues and sit at a console where they know immediately where each I/O—and there are nearly 160 inputs in each venue feeding about 56 outputs—is assigned.

“Every mixer will have the exact same experience,” said Dittmar. “And that’s a huge advantage that that keeps the sound very consistent from game to game.”

The Quantum7 consoles, and the three 32-bit I/O-equipped SD-Racks each of the three desks uses to manage that huge input array, feed L-Acoustics PA systems in each venue, whose sound is focused on the field of play.

The Arena system comprises 60 L-Acoustics K2 loudspeakers configured as 10 hangs of six enclosures each, buttressed by a dozen L-Acoustics KS28 subs, with a slightly smaller PA deployed in the Visa and HP venues.

The Quantum7 desks also provide monitor input to the mixers handling the crowd sounds and sound effects, and they additionally deliver a discrete 5.1-surround feed to the broadcast compound, said Dittmar.

The consoles’ features are also making their presence felt, providing the slots for the Dante cards that are taking in the audio from those submixers, 10 channels each from three laptop sources per venue.

“These are extremely high channel counts feeding a unique PA system for a major league sports event that’s never been done before,” said Dittmar.
