Platinum Tools Features New ezEX-RJ45 Shielded Connectors at InfoComm 2018

New Platinum Tools shielded connectors allow conductors to pass through front end to help with verifying the wiring sequence before terminating.

CI Staff Leave a Comment
Platinum Tools Features New ezEX-RJ45 Shielded Connectors at InfoComm 2018

Platinum Tools will feature the recently launched ezEX-RJ45 shielded connectors during InfoComm 2018 from June 6-8 at the Las Vegas Convention Center [booth C3445]. The new Platinum Tools ezEX-RJ45 connectors are now shipping.

“Our new shielded ezEX-RJ45 connectors are designed for larger cables and conductors,” said Lee Sachs, Platinum Tools president and general manager in the company announcement.

“They feature a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector, making it easy to verify the wiring sequence before terminating. These connectors are typically used with either CAT6 CAT6A and are terminated with EXO Crimp Frame and EXO-EX Die (100061C).”

Additional features and specifications include:

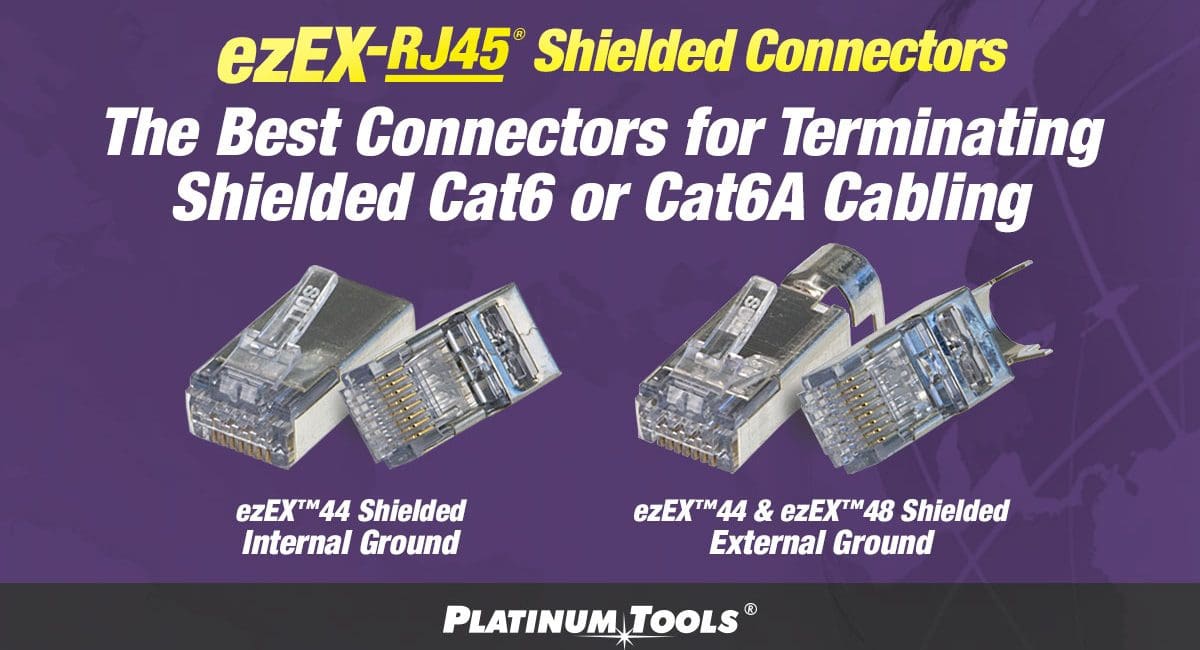

ezEX44 Shielded CAT6 Connector, Internal Ground

  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Shielded 5e/6/6A compliant
  • Insulation Diameter (Conductor) – Size range: 0.039in. – 0.044in. (1.0 –1.12mm)
  • Max Outer Diameter: 0.2805in. (7.1mm)
  • Solid or Stranded 24-22 AWG
  • TAA, TIA, RoHS, UL & FCC compliant
  • Made in the USA

ezEX44 Shielded, External Ground, CAT6 Connector

  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Shielded 5e/6/6A compliant
  • Insulation Diameter (Conductor) – Size range: 0.039in. – 0.044in. (1.0 –1.12mm)
  • Max Outer Diameter: 0.305in. (7.75mm)
  • Solid or Stranded 24-22 AWG
  • TAA, TIA, RoHS, UL & FCC compliant
  • Made in the USA

ezEX48 Shielded, External Ground, CAT6A Connector

  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Shielded 6/6A compliant
  • Insulation Diameter (Conductor) – Size range: 0.043in. – 0.048in. (1.09 –1.22mm)
  • Max Outer Diameter: 0.305in. (7.75mm)
  • Solid or Stranded 23-22 AWG
  • TAA, TIA, RoHS, UL & FCC compliant
  • ezEX44 – ezEX-RJ45® CAT6 Connector
  • Made in the USA

Click here for more information about Platinum Tools ezEX-RJ45 shielded connectors or call 800-749-5783 or email info@platinumtools.com for product updates.

Last year, Platinum Tools launched its Net Chaser Ethernet speed certifier and network tester, which won a CI BEST Award.
