Extron Switching, Distribution, Control Systems Power Viettel Group HQ AV System

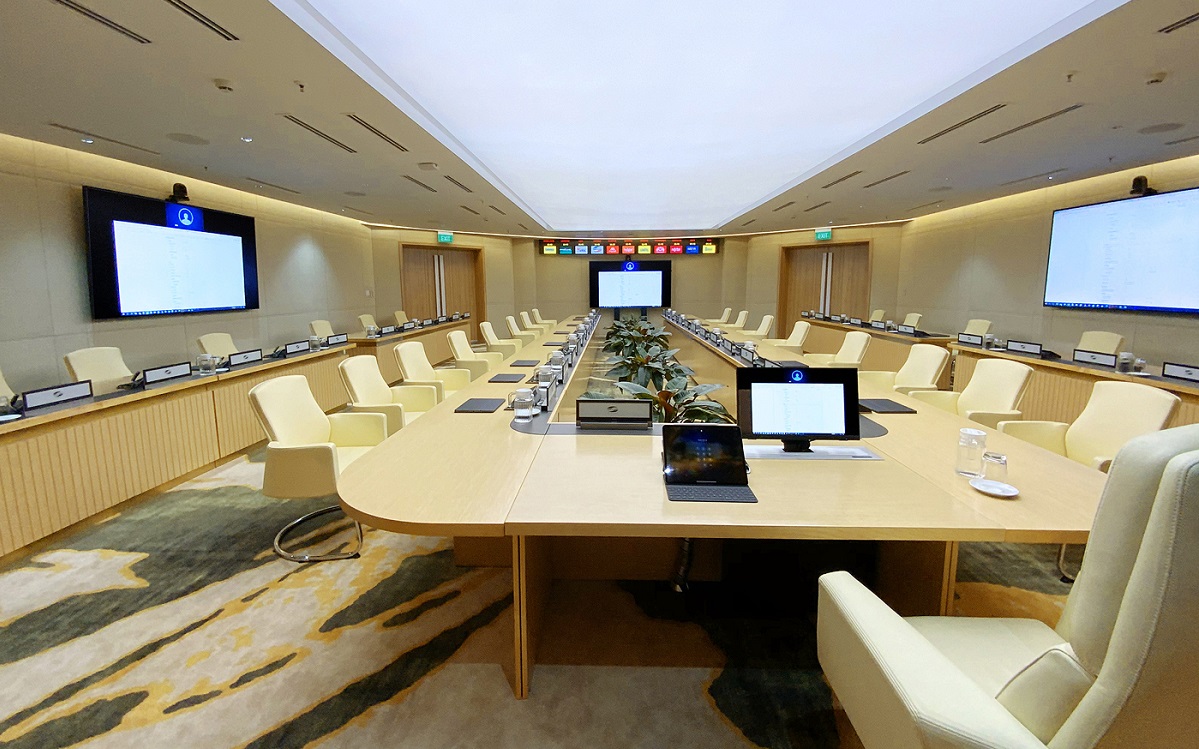

Briefing Room with Wall-to-Wall AV

In the company’s briefing room, four walls are equipped with PTZ cameras and flat panel displays, including a 98-inch display at the front of the room. However, a massive 189-inch projection screen can be lowered for use with a projector deployed from the ceiling for larger content needs.

At the brow of the ceiling at the front is a row of auxiliary flat panel displays, and AV signal routing is handled by an XTP II CrossPoint 3200 Matrix Switcher distributing content via HDMI, SDI, analog audio, and twisted pair XTP inputs and outputs.

The PTZ cameras feed the matrix switcher via a live video switcher for Hollywood-style production, and an Annotator 300 Annotation Processor allows presenters to draw, point, or type over live presentations.

The room’s sophisticated sound is anchored by a DMP 128 Plus that conditions audio from program sources, wired, and wireless mics. Twelve ceiling speakers are driven by an XPA 2002 amplifier.
