Extron Switching, Distribution, Control Systems Power Viettel Group HQ AV System

On-Stage Projection Screen Plus Six Flat Panel Displays Provide Clear Views for Everyone in the Auditorium

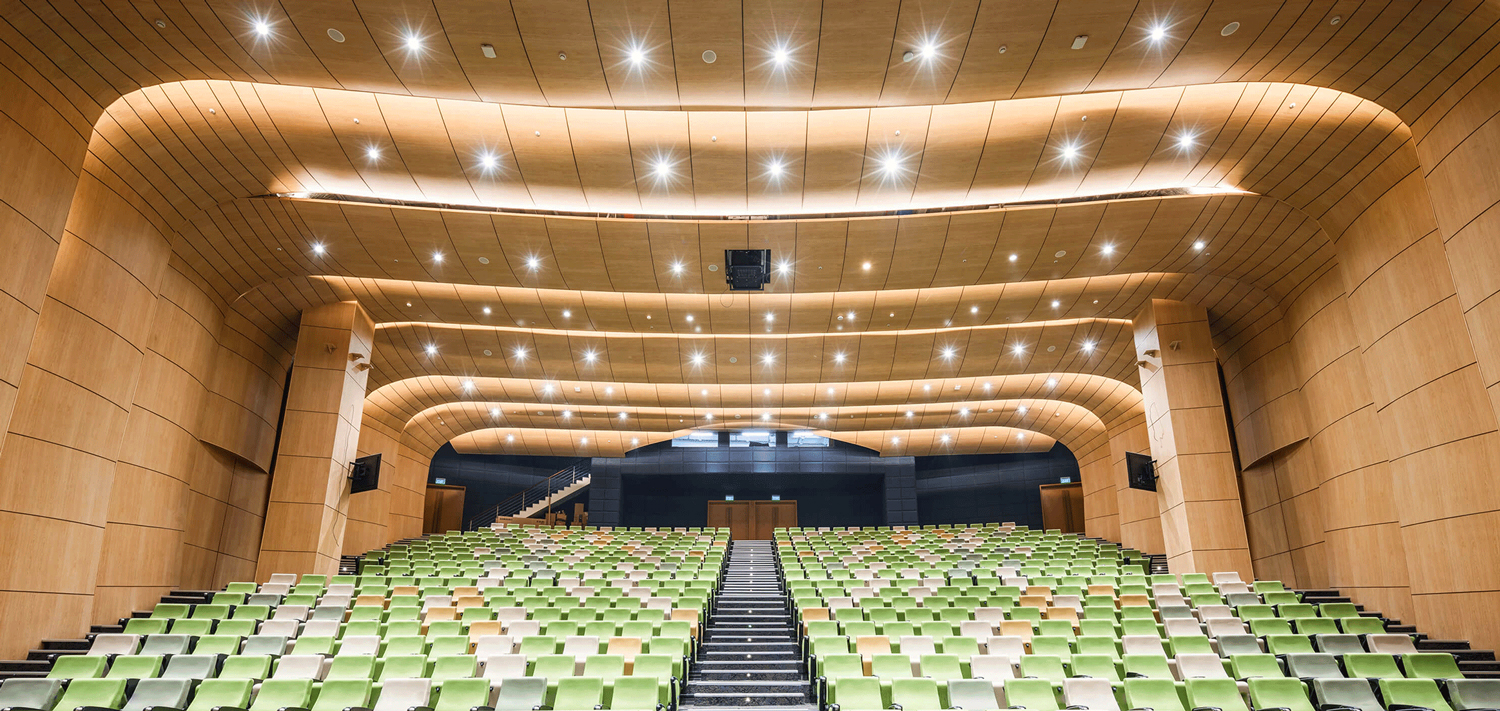

The building also includes a 600-seat auditorium for major company and civic events, and it is now equipped with a sophisticated AV system that can handle such large events.

According to Extron, the system includes four studio cameras with outputs processed by a live video production switcher, four PTZ cameras and five HDMI sources for PCs, BYOD devices via Wi-Fi and more.

A ceiling projector provides the video image on the on-stage screen, and other displays are installed in the audience seating area and control room.

For switching and distribution, the auditorium is equipped with two XTP II CrossPoint 3200 Matrix Switchers distributing content via HDMI, SDI, analog audio, and XTP inputs and outputs. XTP Transmitters and Receivers transport signals that run over long distances via shielded twisted pair cable. A DMP 128 Plus Digital Matrix Processor fine tunes audio delay and echo cancellation characteristics for the auditorium acoustics.

There are multiple auxiliary video outputs routed to WPD 100 TP Series XTP/DTP pass-through wallplates around the auditorium that provide connection points for additional projectors or flat panel displays if needed. A matrix switcher output feeds event content to the SMP 352, which can store the content internally or on USB memory sticks and can stream live or on demand.
